GMF60919

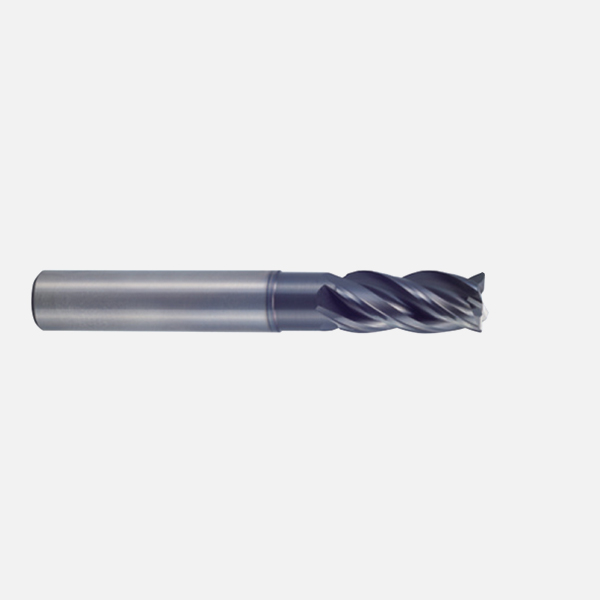

Carbide 4 flute extended length
SKU: GMF60919
Availability:
Canada : 0 Out of stock
OTHER : 2 In stock
Price:
Barcode : GMF60919
Lead Time (in days) : 120
Size : 16(C.40) x 16 x 22(55) x 109 4F 35/37DEG



All items in stock at our Burlington location will ship the same day. Other available stock will be 3 days or less. For stock arriving from outside of North America, please contact YG-1 Customer Service for details.

Products specifications
Size/Dimension 16(C.40) x 16 x 22(55) x 109 4F 35/37DEG
Application "P,M,K,S", "P,M,K,S"
Size/Dimensions 16(C.40) x 16 x 22(55) x 109 4F 35/37DEG, 16(C.40) x 16 x 22(55) x 109 4F 35/37DEG
Coating Y, Y
Cutting Diameter 16 mm
Radius C.40
Shank Diameter 16 mm
Length of Cut 22 mm
Length below Shank 55 mm
Overall Length 109 mm
Number of Flutes 4
Helix Angle 35/37DEG
Material Carbide
Shank Type Plain, Plain, Plain, Plain, Plain, Plain, Plain, Plain, Plain, Plain
End Type Single
Coating Material Y
Series GMF60, GMF60, GMF60, GMF60, GMF60, GMF60, GMF60, GMF60, GMF60, GMF60
