GMF61160

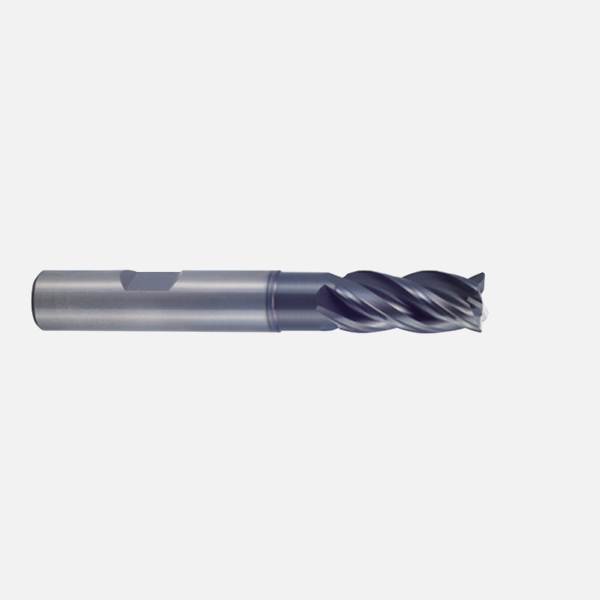

Carbide 4 flute extended length chamfer
SKU: GMF61160
Availability:
Canada : 0 Out of stock
OTHER : 5 In stock
Price:
Barcode : GMF61160
Lead Time (in days) : 120
Size : 16(C.20) x 16 x 22(38) x 92 4F 35/37DEG



All items in stock at our Burlington location will ship the same day. Other available stock will be 3 days or less. For stock arriving from outside of North America, please contact YG-1 Customer Service for details.

Products specifications
Size/Dimension 16(C.20) x 16 x 22(38) x 92 4F 35/37DEG
Coating Y, Y
Size/Dimensions 16(C.20) x 16 x 22(38) x 92 4F 35/37DEG, 16(C.20) x 16 x 22(38) x 92 4F 35/37DEG
Application "P,M,K,S", "P,M,K,S"
Cutting Diameter 16 mm
Radius C.20
Shank Diameter 16 mm
Length of Cut 22 mm
Length below Shank 38 mm
Overall Length 92 mm
Number of Flutes 4
Helix Angle 35/37DEG
Material Carbide
Shank Type Flat, Flat, Flat, Flat, Flat, Flat, Flat, Flat, Flat, Flat, Flat
End Type Single
Coating Material Y
Series GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61
