GMF61200

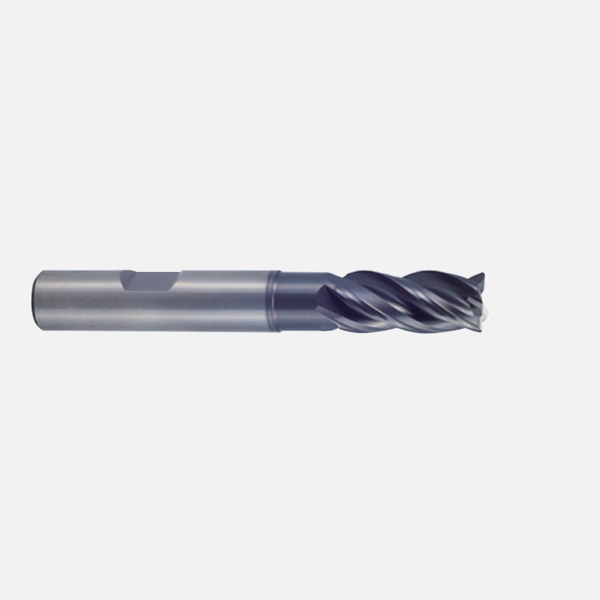

Carbide 4 flute extended length chamfer
SKU: GMF61200
Availability:
Canada : 0 Out of stock
OTHER : 2 In stock
Price:
Barcode : GMF61200
Lead Time (in days) : 120
Size : 20(C.50) x 20 x 26(50) x 104 4F 35/37DEG



All items in stock at our Burlington location will ship the same day. Other available stock will be 3 days or less. For stock arriving from outside of North America, please contact YG-1 Customer Service for details.

Products specifications
Size/Dimension 20(C.50) x 20 x 26(50) x 104 4F 35/37DEG
Application "P,M,K,S", "P,M,K,S"
Coating Y, Y
Size/Dimensions 20(C.50) x 20 x 26(50) x 104 4F 35/37DEG, 20(C.50) x 20 x 26(50) x 104 4F 35/37DEG
Cutting Diameter 20 mm
Radius C.50
Shank Diameter 20 mm
Length of Cut 26 mm
Length below Shank 50 mm
Overall Length 104 mm
Number of Flutes 4
Helix Angle 35/37DEG
Material Carbide
Shank Type Flat, Flat, Flat, Flat, Flat, Flat, Flat, Flat, Flat, Flat
End Type Single
Coating Material Y
Series GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61
