GMF61915

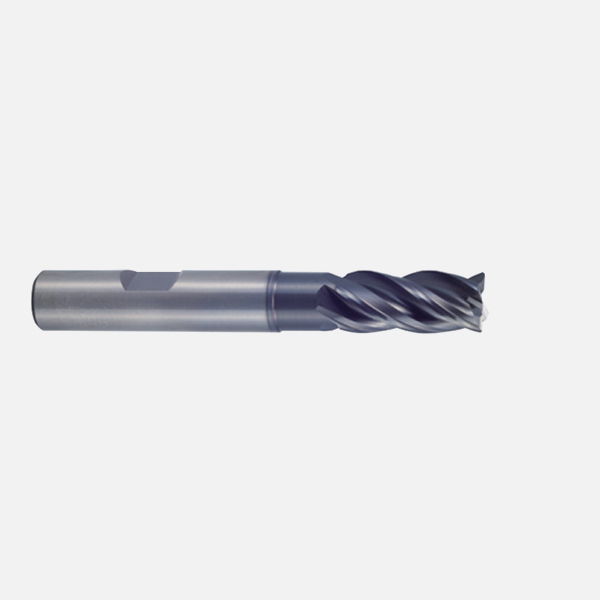

Carbide 4 flute extended length chamfer
SKU: GMF61915
Availability:
Canada : 0 Out of stock
OTHER : 6 In stock
Price:
Barcode : GMF61915
Lead Time (in days) : 120
Size : 10(C.30) x 10 x 22(32) x 72 4F 35/37DEG



All items in stock at our Burlington location will ship the same day. Other available stock will be 3 days or less. For stock arriving from outside of North America, please contact YG-1 Customer Service for details.

Products specifications
Size/Dimension 10(C.30) x 10 x 22(32) x 72 4F 35/37DEG
Coating Y, Y
Size/Dimensions 10(C.30) x 10 x 22(32) x 72 4F 35/37DEG, 10(C.30) x 10 x 22(32) x 72 4F 35/37DEG
Application "P,M,K,S", "P,M,K,S"
Cutting Diameter 10 mm
Radius C.30
Shank Diameter 10 mm
Length of Cut 22 mm
Length below Shank 32 mm
Overall Length 72 mm
Number of Flutes 4
Helix Angle 35/37DEG
Material Carbide
Shank Type Flat, Flat, Flat, Flat, Flat, Flat, Flat, Flat, Flat, Flat, Flat
End Type Single
Coating Material Y
Series GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61
