GMF61916

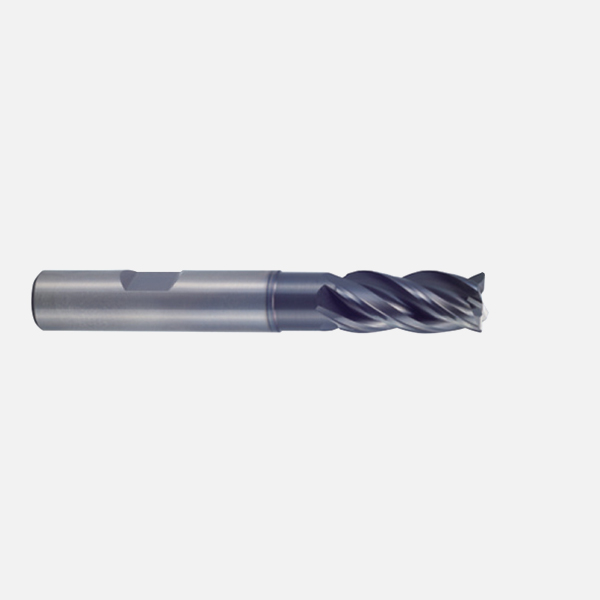

Carbide 4 flute extended length chamfer
SKU: GMF61916
Availability:
Canada : 0 Out of stock
OTHER : 6 In stock
Price:
Barcode : GMF61916
Lead Time (in days) : 120
Size : 12(C.35) x 12 x 16(40) x 93 4F 35/37DEG



All items in stock at our Burlington location will ship the same day. Other available stock will be 3 days or less. For stock arriving from outside of North America, please contact YG-1 Customer Service for details.

Products specifications
Size/Dimension 12(C.35) x 12 x 16(40) x 93 4F 35/37DEG
Application "P,M,K,S", "P,M,K,S"
Size/Dimensions 12(C.35) x 12 x 16(40) x 93 4F 35/37DEG, 12(C.35) x 12 x 16(40) x 93 4F 35/37DEG
Coating Y, Y
Cutting Diameter 12 mm
Radius C.35
Shank Diameter 12 mm
Length of Cut 16 mm
Length below Shank 40 mm
Overall Length 93 mm
Number of Flutes 4
Helix Angle 35/37DEG
Material Carbide
Shank Type Flat, Flat, Flat, Flat, Flat, Flat, Flat, Flat, Flat, Flat, Flat
End Type Single
Coating Material Y
Series GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61, GMF61
