GMF62942

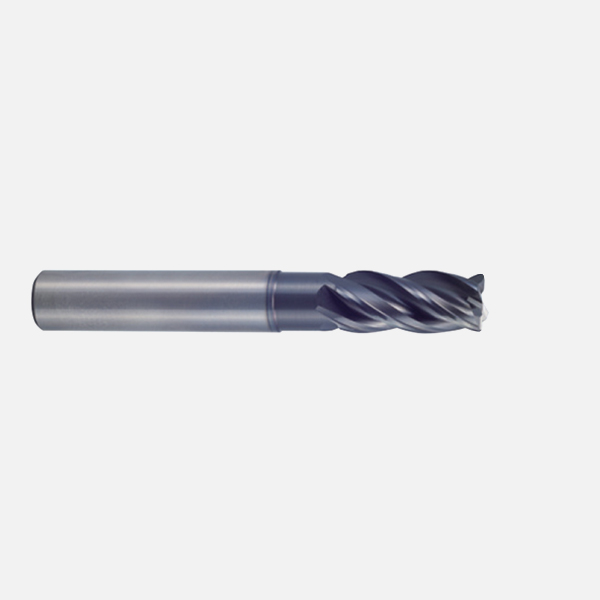

Carbide 4 flute extended length corner radius
SKU: GMF62942
Availability:
Canada : 0 Out of stock
OTHER : 1 In stock
Price:
Barcode : GMF62942
Lead Time (in days) : 120
Size : 16(R2.0) x 16 x 22(87) x 141 4F 35/37DEG



All items in stock at our Burlington location will ship the same day. Other available stock will be 3 days or less. For stock arriving from outside of North America, please contact YG-1 Customer Service for details.

Products specifications
Size/Dimension 16(R2.0) x 16 x 22(87) x 141 4F 35/37DEG
Application "P,M,K,S", "P,M,K,S"
Coating Y, Y
Size/Dimensions 16(R2.0) x 16 x 22(87) x 141 4F 35/37DEG, 16(R2.0) x 16 x 22(87) x 141 4F 35/37DEG
Cutting Diameter 16 mm
Radius R2.0
Shank Diameter 16 mm
Length of Cut 22 mm
Length below Shank 87 mm
Overall Length 141 mm
Number of Flutes 4
Helix Angle 35/37DEG
Material Carbide
Shank Type Plain, Plain, Plain, Plain, Plain, Plain, Plain, Plain, Plain, Plain, Plain
End Type Single
Coating Material Y
Series GMF62, GMF62, GMF62, GMF62, GMF62, GMF62, GMF62, GMF62, GMF62, GMF62, GMF62
