GMF62943

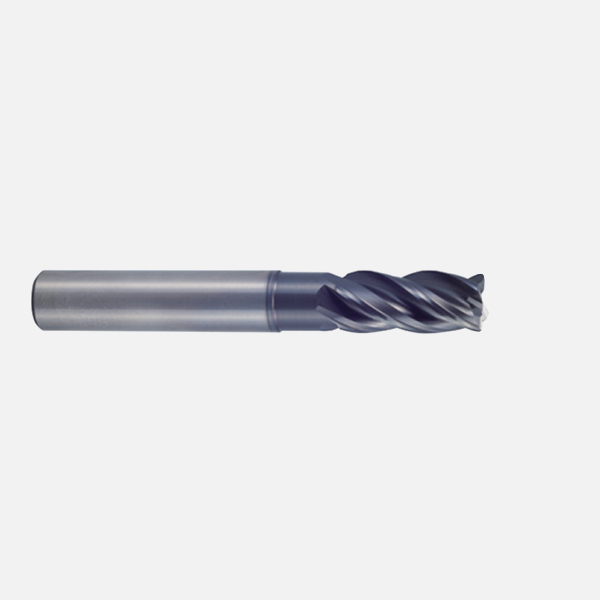

Carbide 4 flute extended length corner radius
SKU: GMF62943
Availability:
Canada : 0 Out of stock
OTHER : 28 In stock
Price:
Barcode : GMF62943
Lead Time (in days) : 120
Size : 16(R3.0) x 16 x 22(87) x 141 4F 35/37DEG



All items in stock at our Burlington location will ship the same day. Other available stock will be 3 days or less. For stock arriving from outside of North America, please contact YG-1 Customer Service for details.

Products specifications
Size/Dimension 16(R3.0) x 16 x 22(87) x 141 4F 35/37DEG
Coating Y, Y
Size/Dimensions 16(R3.0) x 16 x 22(87) x 141 4F 35/37DEG, 16(R3.0) x 16 x 22(87) x 141 4F 35/37DEG
Application "P,M,K,S", "P,M,K,S"
Cutting Diameter 16 mm
Radius R3.0
Shank Diameter 16 mm
Length of Cut 22 mm
Length below Shank 87 mm
Overall Length 141 mm
Number of Flutes 4
Helix Angle 35/37DEG
Material Carbide
Shank Type Plain, Plain, Plain, Plain, Plain, Plain, Plain, Plain, Plain, Plain, Plain
End Type Single
Coating Material Y
Series GMF62, GMF62, GMF62, GMF62, GMF62, GMF62, GMF62, GMF62, GMF62, GMF62, GMF62
